1) Type: AR S 3%2) PH Value: 6.0-8.53) Freezing point: -10°C4) Foam Expansion: 6-9times5) Application Temperature: -5 to 45℃6) Packing: 200kgs/barrel7) Shelf Life: 2 years for AR function, 8 years foaming function. 1) Type: AFFF 3%2) PH Value: 6.0-8.53) Freezing point: -10°C4) Foam Expansion: 6-9times5) Application Temperature: -5 to 45℃6) Packing: 200kgs/barrel7) Shelf Life: 8 Years 1) Type: AR-AFFF 3%2) PH Value: 6.0-8.53) Freezing point: -10°C4) Foam Expansion: 6-9times5) Application Temperature: -5 to 45℃6) Packing: 200kgs/barrel7) Shelf Life: 2 years for AR function, 8 years foaming function.

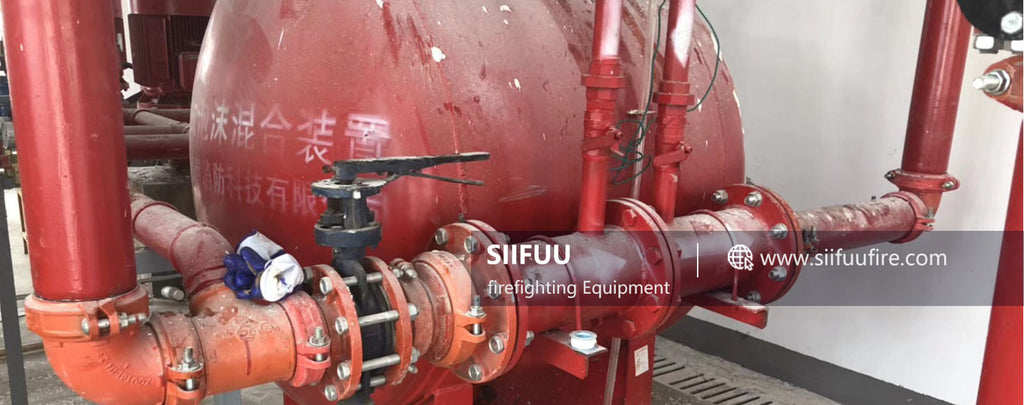

1) Capacity :1000L / 1500L / 2000L / 2500L / 3000L / 4000L / 5000L2) Installation Direction: vertical3) With propotioner, without foam liquid4) Main Pipe Size: 3" to 10", flanged, BS4504/PN16/EN10925) Start-up Method: electric and manual6) Mixing Ratio: 3% or 6%7) Flow Rate: 4L/S to 360L/S8) Material: carbon steel thickness≥6mm, PVC capsule.9) Rated Working Pressure: 0.6-1.2MPa10) Strength & Sealing test: 1.5MPa & 1.32MPa11) Pressure Loss: ＜＝0.2MPa(@Max. flow)

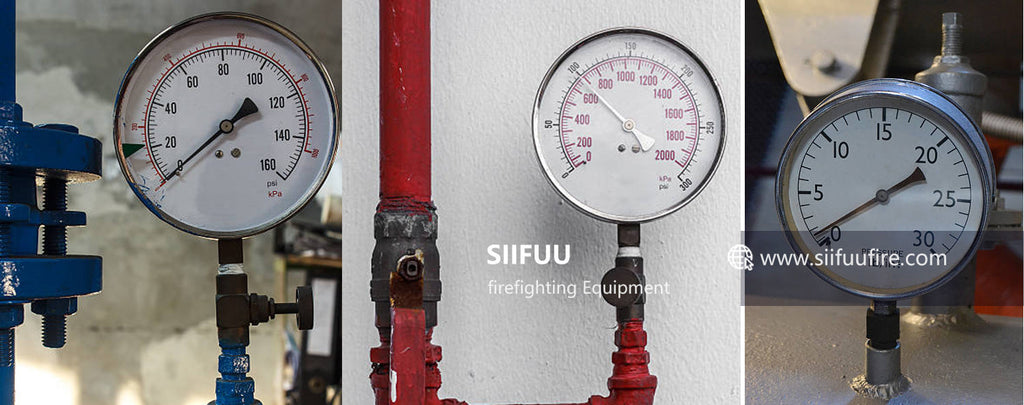

1) Dial Diameter: 60mm / 100mm2) Measuring range: 0-2.5MPa(0-350PSi)3) Material: Carbon steel body and brass nipple4) Thread: 60mm=M14*1.5, 100mm=M20*1.5

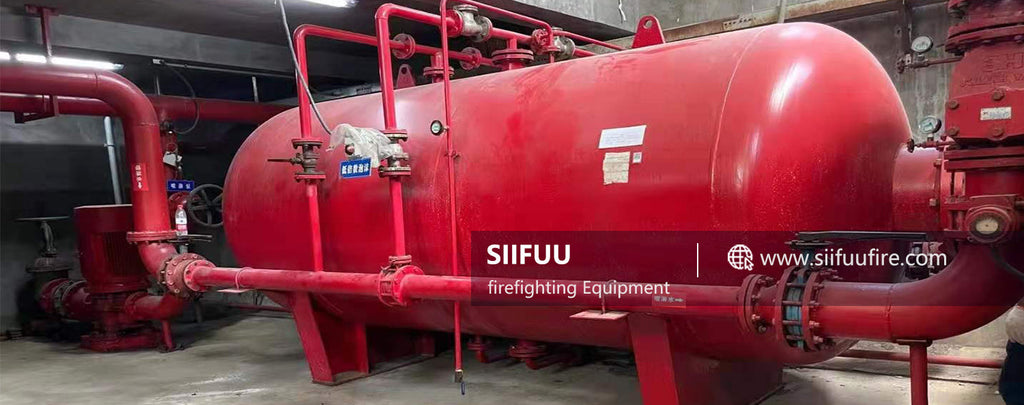

1) Capacity : 1000L / 2000L / 3000L / 4000L / 5000L / 6000L / 8000L / 10000L / 15000L2) Installation Direction: horizontal3) With propotioner, without foam liquid4) Main Pipe Size: 3" to 10", flanged, BS4504/PN16/EN10925) Start-up Method: electric and manual6) Mixing Ratio: 3% or 6%7) Flow Rate: 4L/S to 360L/S8) Material: carbon steel thickness≥6mm, PVC capsule.9) Rated Working Pressure: 0.6-1.2MPa10) Strength & Sealing test: 1.5MPa & 1.32MPa11) Pressure Loss: ＜＝0.2MPa(@Max. flow)

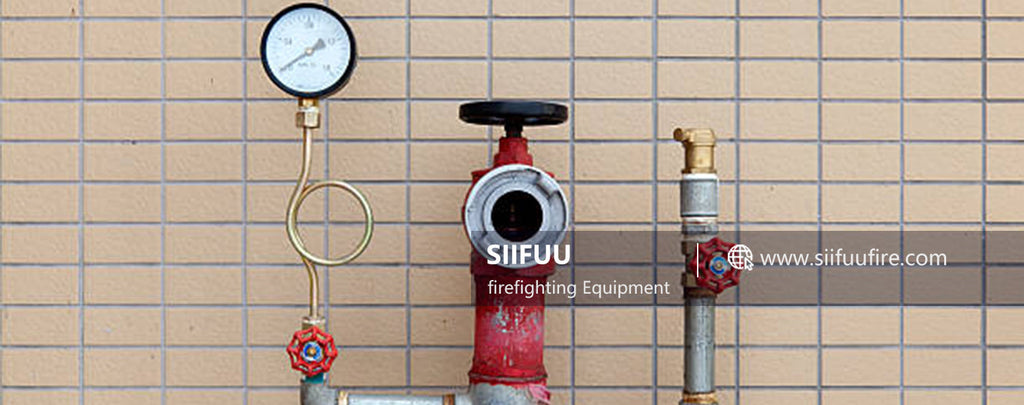

1) Size: DN15-DN252) Rated Working Pressure: 1.6MPa / 16bar / 235psi3) Material: barss4) Thread: BSP5) Weight: DN15=120g, DN20=140g, DN25=180g
